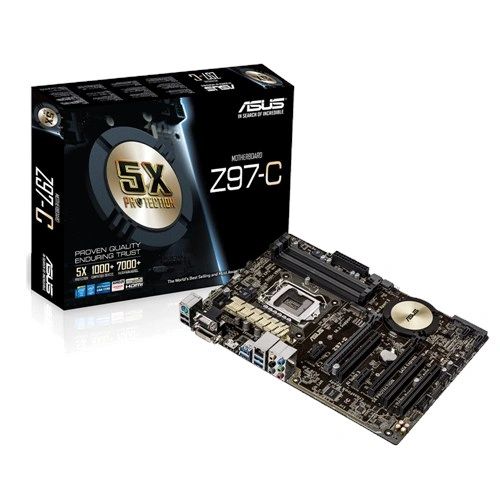

ASUS Z97-C Socket 1150

Intel® LGA1150 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready

The Intel® Z97 Express Chipset is a single-chipset design that supports Intel® LGA1150 4th, New 4th & 5th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z97 provides a maximum 6 USB 3.0 ports, 6 SATA 6Gbit/s ports and 10Gbit/s M.2 support for faster data retrieval. Moreover, the Intel® Z97 Express Chipset also supports iGPU functions, letting users enjoy the latest Intel integrated graphics performance.

CPU

Intel® Socket 1150 for 4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0

Chipset

Intel® Z97

Memory

   4 x DIMM, Max. 32GB, DDR3     3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2250(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz     Non-ECC, Un-buffered Memory *

Graphic

   Integrated Graphics Processor- Intel® HD Graphics support

    Multi-VGA output support : HDMI/DVI-D/RGB ports

        - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

        - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

        - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz

    Maximum shared memory of 512 MB

    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

    Supports up to 3 displays simultaneously

    Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots

      1 x PCIe 3.0/2.0 x16 (x16 mode)

      1 x PCIe 2.0 x16 (max at x4 mode) *1

      2 x PCIe 2.0 x1

      3 x PCI

Storage

   1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports

    1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*2

    4 x SATA 6Gb/s port(s), gray

    Support Raid 0, 1, 5, 10

    Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN

    Intel® LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)

Audio

    - Supports : Jack-detection, Front Panel Jack-retasking

USB Ports

    6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board)

    8 x USB 2.0/1.1 port(s) (2 at back panel, black, 6 at mid-board)

Operating System Support

Windows® 8.1 86x64, Windows® 8 86x64, Windows® 7 86x64

Form Factor

    ATX Form Factor

    12.0 inch x 8.6 inch ( 30.5 cm x 21.8 cm )
